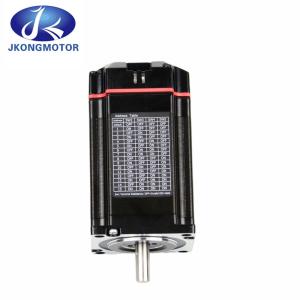

RS485 CANopen 1.2N.M / 2.2N.M / 3N.M Nema 23 Integrated Closed Loop Stepper Motor With Driver 56 / 80mm CANopen CiA402

The STM fused step motor and drive technologies into a single device, offering savings on space, wiring and cost over conventional motor and drive solutions. With the controller, STM has more control options, and stall detection and stall prevention functions.

JKONGMOTOR's ISM57 Series Integrated Motor is a cost effective, high performance, motor with the drive built in. It is based on advanced digital current control technology, and features high torque, low noise, and low vibration. Operational parameters are switch selectable.

JKONGMOTOR's ISM Series Integrated Stepper Motors are compact versatile Integrated stepper motors that meet almost any need for a compact stepper motor system. The force range is from 0.2 to 25Nm in flange size NEMA 17(43mm) to NEMA 43 (110mm).The basic idea in the ISM motors is to minimize the installation costs but also to make a component that is much better protected against electrical noise which can be a typical problem when using long cables between controller and motor. The stepper motor, hall sensor or encoder and electronics are specially developed by JKONGMOTOR so that they together form a closed unit where the power driver and controller is mounted inside the motor in a closed section.

1. 57mm Hybrid Nema 23 Integrated Stepper Motor Genaral Specification:

2,Features of integrated stepper motor controller driver:

1): A new generation of 32-bit DSP technology.

2): Support standard MODBUS-RTU protocol.

3): 4-way input function terminal, 2-way output function terminal.

4): The torque decay is reduced, and the speed can reach 3000rpm.

5): Built-in alarm output for easy monitoring and control.

6): Intelligently adjust current, reduce vibration, noise and heat, and increase efficiency by 35%.

7): Voltage range: DC24~50V.

8): 16 adjustable subdivisions, the default is 1000pulse/r.

9): Excellent high speed and rigidity, perfect integration of servo and stepper.

10): With overvoltage, undervoltage, overcurrent and other protection functions.

11): Integrated design with drive motor. Easy installation, small footprint and simple wiring.

3,Application of integrated drive stepper motor:

Printing, AOI, panel bonding, transfer equipment, etc. in PCB related equipment; camera related equipment such as camera and fingerprint; solid crystal machine, wire bonding machine, dispensing machine, beam splitter, and package tape machine in packaging.

4,General Specification of nema 23 integrated stepper motor:

5,Techical Data:

6,Terminal Description:

Terminal Description
Pin	Function	Note	Interface Schematic
PWR	Power indicator	Power on indicator
ALM	Alarm indicator	Alarm fishing indicator
X0-X3	4 input terminal	Input/Output terminal, signal power supply 24V, support NPN and PNP two wiring modes, support terminal function software modification
XCOM	Input common
Y0-Y1	2 output terminal
YCOM	Output common
B-	RS485 communication interface 1	2 sets of RS485 communication interface, used for in and out connection, default baud rate is 115200, data format is: 8-bit data, no check digit, 1 stop bit.
A+
B-	RS485 communication interface 2
A+
+DC	Power input positive terminal	DC24~50V
GND	Power input negative terminal

7,Input / Output terminal:

8,DIP switch settings:

9,Power port setting:

10,Alarm release:

11,Use environment:

12,Product Dimensions: (Unit=mm)

13,Customized Design:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
