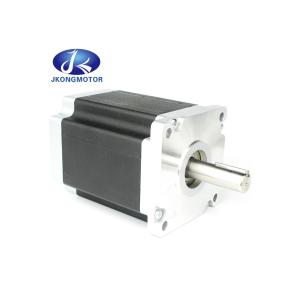

1.8° Nema42 12N.m 6A JK110HS hybrid CNC kit micro stepper motor machine

Features:

1. Position error correction and never lose steps.
2. Quick response and perfect acceleration, high torque at high speed.
3. Automatic current adjustment based on load, lower temperature rise.
4. Over-current, over-voltage, and position ultra difference protection function.
5. Pulses response frequency can reach 200KHZ
6. 15 kinds micro-steps choice, highest 51200 microsteps/rev.
7. High dynamic performance at acceleration and deceleration, no vibration from high speed to zero speed.

NEMA 8,11,14,17,23,24, 34, 42, 52 Stepper Motor & Driver with CE, RoHS, OEM

2 phase stepper motor, stepping motor, step motor
Professional manfacuturer for stepper motor, have NEMA8, NEMA11. NEMA14, NEMA17, NEMA23, NEMA34, NEMA42.
1.8 degree, 0.9 degree. Single shaft and double shaft.

Electrical Specification of nema 42 stepper motor:

Model	Step Angle	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia	Mass
	( °)	(L)mm	A	Ω	mH	N.m	No.	kg.cm	g.cm	Kg
JK110HS99-5504	1.8	99	5.5	0.9	12	11.2	4	3	5500	5
JK110HS115-6004	1.8	115	6.0	0.48	7	12	4	4	7100	6
JK110HS150-6504	1.8	150	6.5	0.8	15	21	4	5.9	10900	8.4
JK110HS165-6004	1.8	165	6.0	0.9	14	24	4	6.6	12800	9.1
JK110HS201-8004	1.8	201	8.0	0.67	12	28	4	7.5	16200	11.8

Details of nema 42 stepper motor cnc kit:

JK110HS99-5504 Dimensions:

Unit=mm

Advantages of Hybrid Stepper Motor:

The advantages of the Hybrid Stepper Motor are as follows:-

The length of the step is smaller.

It has greater torque.

Provides Detent Torque with the de-energized windings.

Higher efficiency at lower speed.

Lower stepping rate.

Applications:

Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor,CNC router stepper motor,3D Printer stepper motor.
