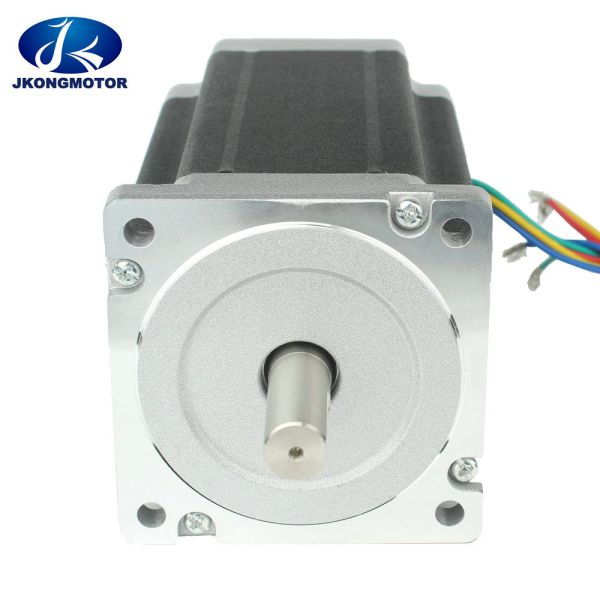

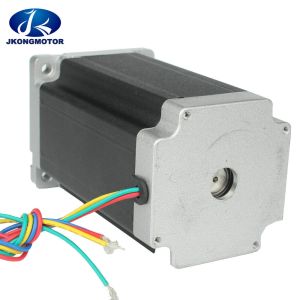

CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment.

    Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers

    Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers
    • Buy cheap CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment. from wholesalers

    CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment.

    Ask Lasest Price
    Brand Name : Jkongmotor
    Model Number : JK86HS
    Certification : CE, ROHS,ISO9001
    Price : US $16 - 49 / Pieces
    Delivery Time : For samples , 7-15 days / For batch , 15-25days
    Payment Terms : T/T , paypal , Western Union, L/C
    Supply Ability : 30000pcs / month
    MOQ : 10pcs
    • Product Details
    • Company Profile

    CNC stepper motor NEMA 34 86*86mm 4.5N.m 8.5N.m 12.0N.m Diameter 12.7/14/15.875mm for medical equipment.

    High Performance 86mm Hybrid Stepper Motor 2 Phase Nema 34 Low Vibration cnc kit 4 axis nema 34

    Feartures & Benifits:

    • NEMA34 frame size
    • High step accuracy and resolution
    • Low vibration and noise
    • Can be customized for winding current, shaft options and cables and connectors.
    • CE certified and ROHS compliant

    Genaral Specification of stepper motor nema 34:

    Step Accuracy ------------------------------ ±5%
    Resistance Accuracy ----------------------- ±10%
    Inductance Accuracy ---------------------- ±20%
    Temperature Rise -------------------------- 80°C MAX.
    Ambient Temperature Range ------------- -20°C~ +50°C
    Storage Temperature Range ------------- -30°C~ +60°C
    Insulation Resistance ---------------------- 100M Ω MIN. 500V DC
    Dielectric Strength ------------------------- 500V AC 1min
    Radial Play --------------------------------- 0.02mm MAX. (450g Load)
    End Play ------------------------------------ 0.08mm MAX. (450g Load)
    Max. radial force --------------------------- 220N
    Max. axial force ---------------------------- 60N


    Electical Specifications of nema34 stepper motor:


    Model No.

    Step Angle

    Motor Length

    Current

    /Phase

    Resistance

    /Phase

    Inductance

    /Phase

    Holding Torque

    Lead

    wires

    Detent Torque

    Rotor Inertia

    Motor

    Weight

    ( °)

    (L)mm

    A

    Ω

    mH

    N.m

    No.

    Kg.cm

    g.cm

    Kg

    JK86H66-5904

    1.8

    66

    5.9

    0.28

    1.7

    3.4

    4

    0.8

    1000

    1.7

    JK86H66-2808

    1.8

    66

    2.8

    1.4

    3.9

    3.4

    8

    0.8

    1000

    1.7

    JK86H78-5504

    1.8

    78

    5.5

    0.46

    4

    4.6

    4

    1.2

    1400

    2.3

    JK86H78-4208

    1.8

    78

    4.24

    0.75

    3.4

    4.6

    8

    1.2

    1400

    2.3

    JK86H97-4008

    1.8

    97

    4

    0.98

    4.1

    6.8

    8

    1.6

    1900

    3

    JK86H97-5008

    1.8

    97

    5

    0.65

    2.4

    6.8

    8

    1.6

    1900

    3

    JK86H97-2708

    1.8

    97

    2.7

    1.9

    8.6

    6.8

    8

    1.6

    1900

    3

    JK86H115-6004

    1.8

    115

    6

    0.6

    6.5

    8.7

    4

    2.4

    2700

    3.8

    JK86H115-4208

    1.8

    115

    4.2

    0.9

    6

    8.7

    8

    2.4

    2700

    3.8

    JK86H126-4008

    1.8

    126

    4

    1.3

    5.8

    9.3

    8

    3.0

    3200

    4.5

    JK86H126-5008

    1.8

    126

    5

    0.85

    3.4

    9.3

    8

    3.0

    3200

    4.5

    JK86H126-2708

    1.8

    126

    2.7

    2.5

    12.5

    9.3

    8

    3.0

    3200

    4.5

    JK86H155-6204

    1.8

    153

    6.2

    0.75

    9

    12

    4

    3.6

    4000

    5.4

    JK86H155-4208

    1.8

    153

    4.2

    1.25

    8

    12

    8

    3.6

    4000

    5.4



    Customized shaft:
